- Handles up to 3-Ton/6600 lbs: This 3-Ton capacity long ram hydraulic jack helps you convert your existing hoist to a convenient and fast one. A quick way to raise loads without the backache. A must-have for hydraulic cranes, engine hoists, and a wide variety of applications.
- 26" -45.7" Lifting Range: Minimum height: 26 in/66 cm. Maximum height: 45.7 in/116 cm. The long ram hydraulic round bottom jack provides an ample 19.7 in/50 cm stroke for the optimal lift of objects up to 6600 lb. in weight. And the slow release function for reliability and security.
- Reliable & Durable Jack: Large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life. The piston-ram is treated and polished to resist skiving and utilizes a Y-Style polyurethane sealing ring with a backup ring, preventing the load from falling slowly or bypassing oil drift.
- Labor-saving Long Ram: Long ram jack features a convenient handle with a rubberized comfort grip. Clevis style base allows the jack mounts directly onto most shop cranes. And the glide-action pressure pump is designed to lift with minimal muscle and effort.
- Sturdy Steel Construction: Durable frame is constructed of high-grade steel and built to exacting standards for quality and durability. A lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish. Paint is oil, grease, and dirt-resistance for easy cleanup.

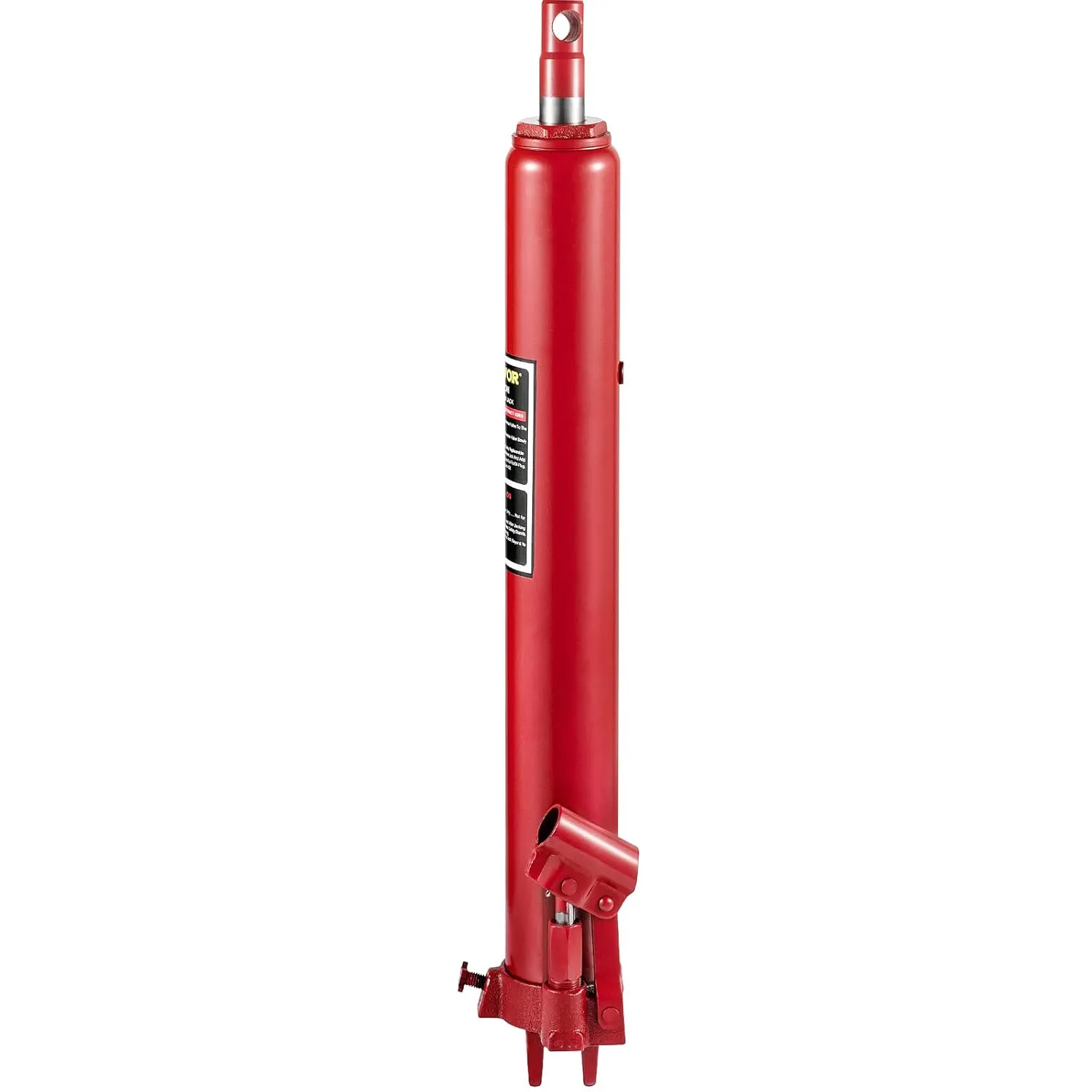

3-Ton Hydraulic Long Ram Jack
Sturdy & Durable & Great Helper

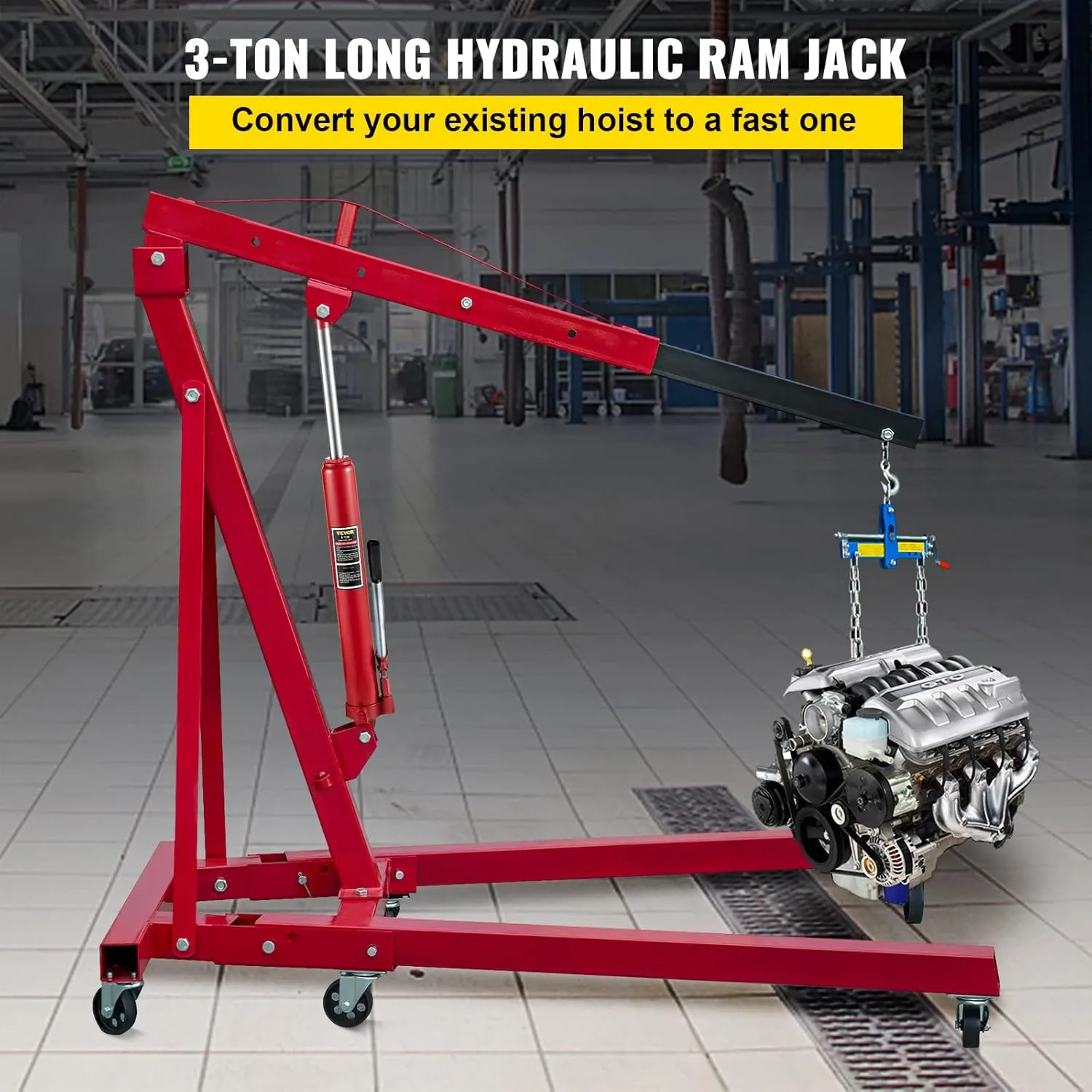

This VEVOR 3-Ton capacity long ram hydraulic jack helps you convert your existing hydraulic hoist to a convenient and fast hoist. It is a quick way to raise loads without the backache. A must-have for hydraulic cranes, engine hoists, and a wide variety of applications. Mounts directly onto most shop cranes. Vertical use only.
key Features
3-Ton Load Capacity
With 3 tons of load-bearing capacity, the long ram jack easily supports your shop cranes, engine hoist, and more. Save your effort and time.
26"-45.7" Lifting Range
The long ram jack features a lifting range from 26" to 45.7" with an ample 19.7 in. stroke. Lift your hoist with ease!

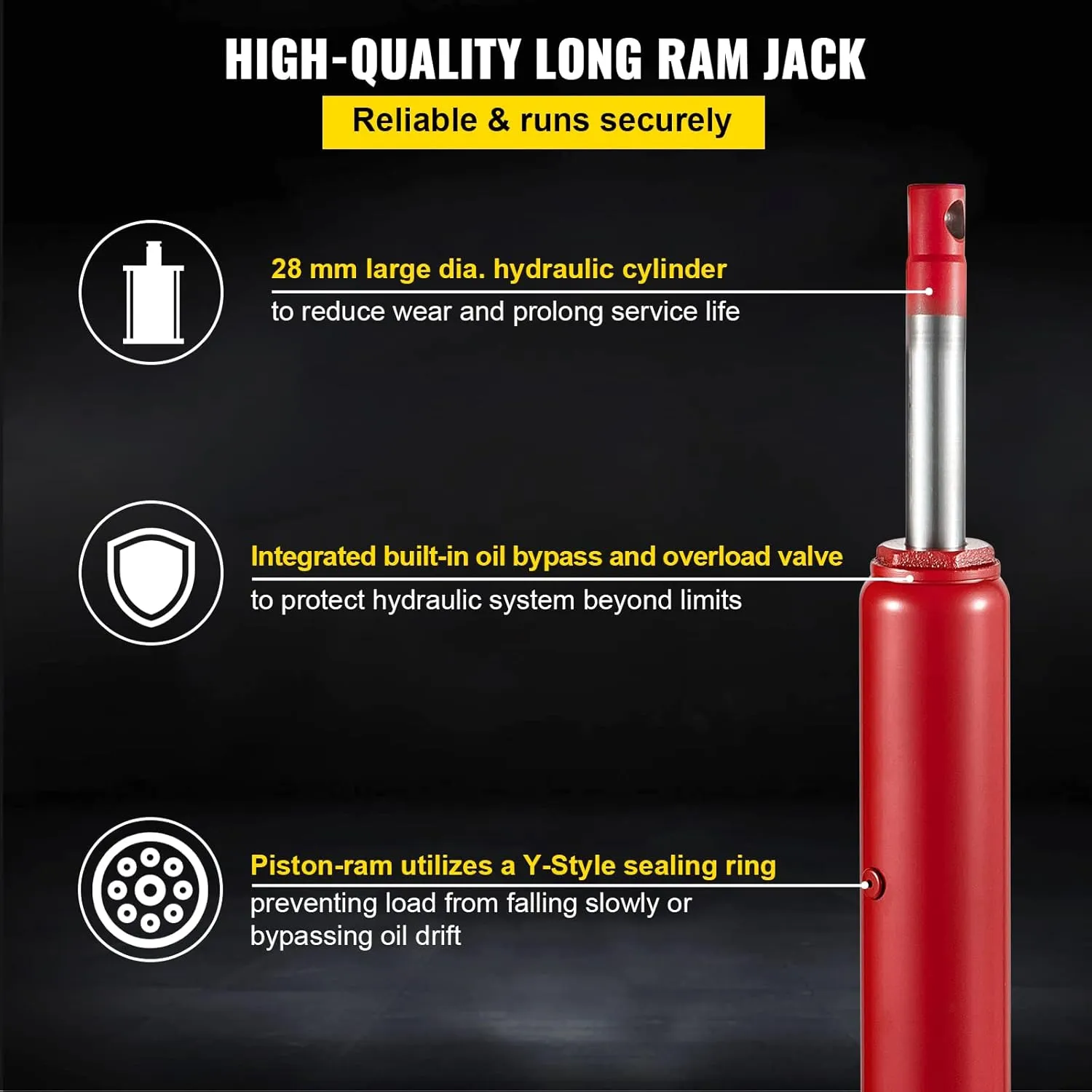

Hydraulic Steel Cylinder
Integrated built-in oil-bypass and overload valve that protects the hydraulic system from extending beyond limits.

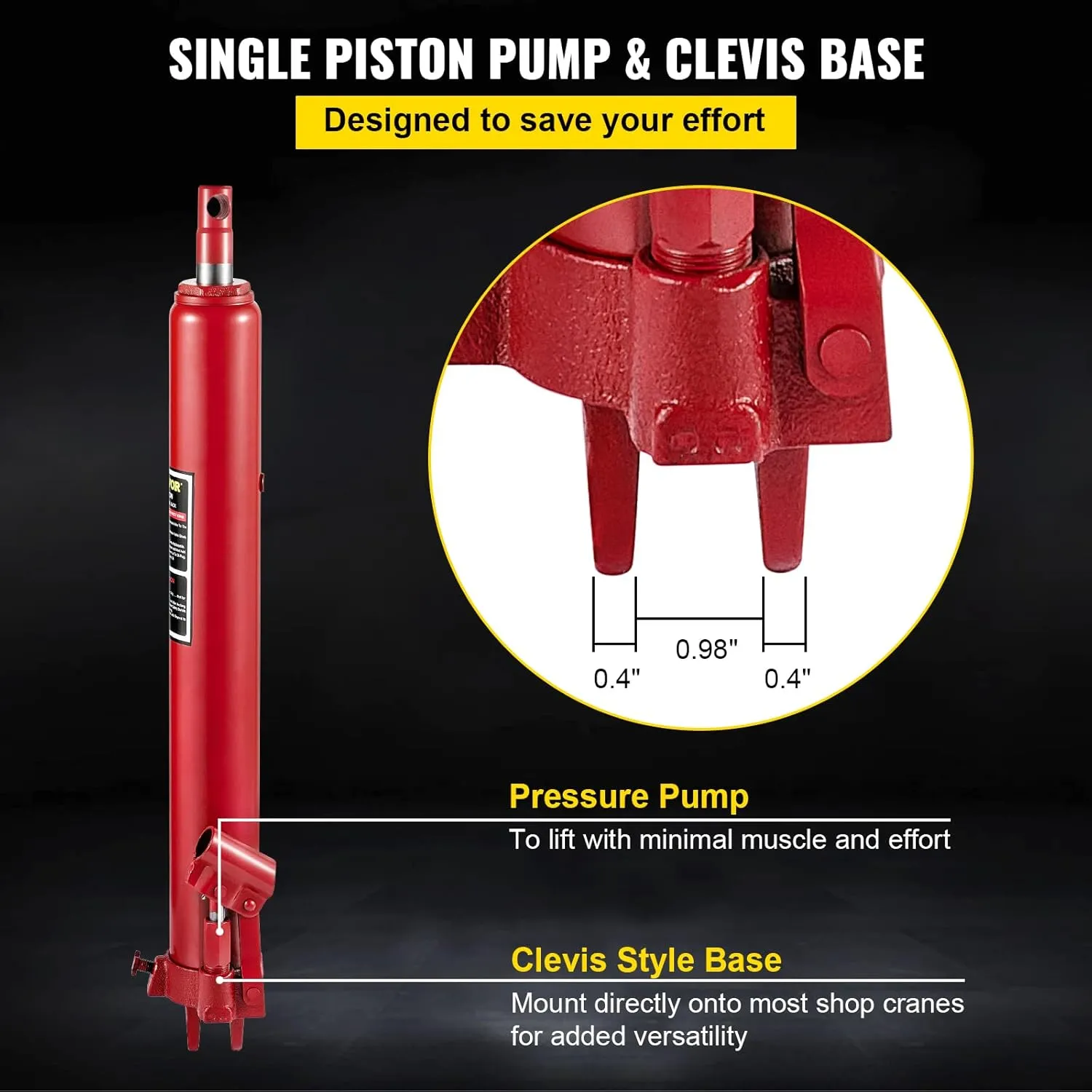

Single Piston Pump & Clevis Base
The pressure pump is designed to lift with minimal muscle and effort. And clevis style base allows it to mount directly onto most shop cranes.

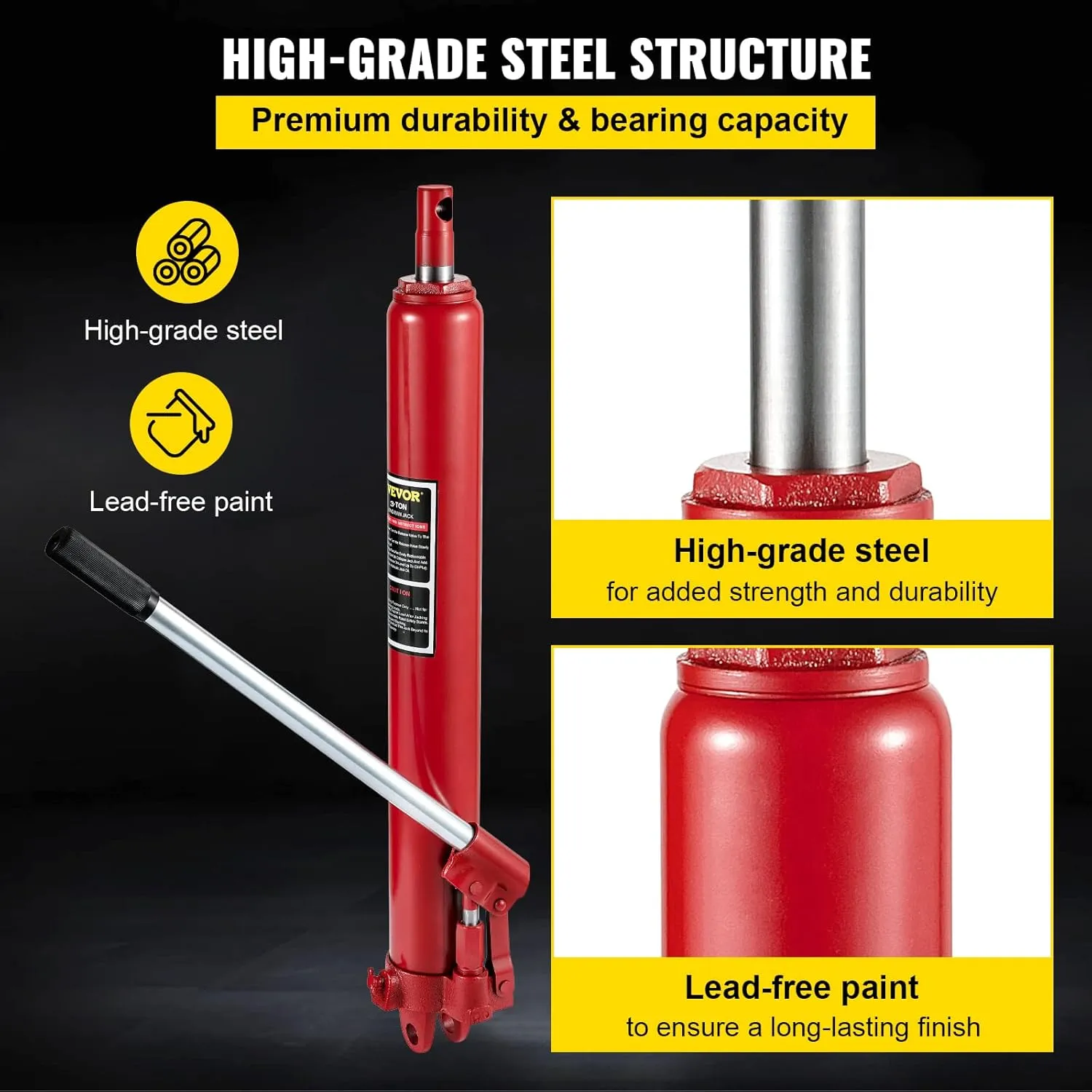

High-grade Steel Structure
The long ram jack is constructed of heavy-duty steel for added strength. It is treated with powder-coated, lead-free paint, providing a durable coating.
Residential and Commercial Use
Our hydraulic long ram jack is intended for residential and commercial use, fitting garage/shop cranes, engine hoists, and more.

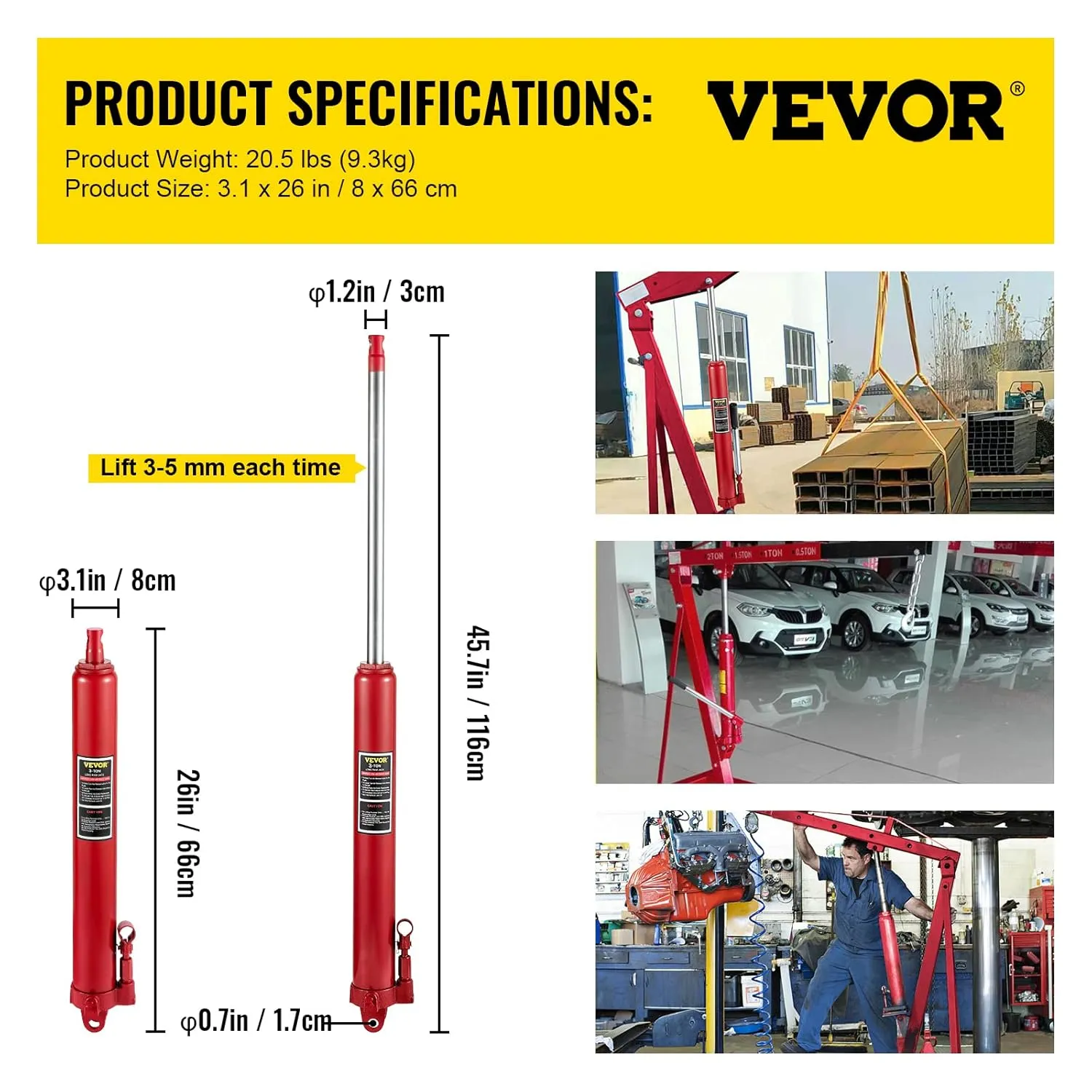

Specifications
Model: VV-CGQJD-LDJ-3T
Lifting Capacity: 3 tons/6600 lbs
Min. Lift Height: 26 in/66 cm
Max. Lift Height: 45.7 in/116 cm
Stoke: 19.7 in/50 cm
Piston Rod Dia.: 2.8 cm/1.1 in
Pinhole Dia.: 1.7 cm/0.7 in
Weight: 8.3 kg/18.3 lb
Diameter: 7 cm/2.8 in
Package Content

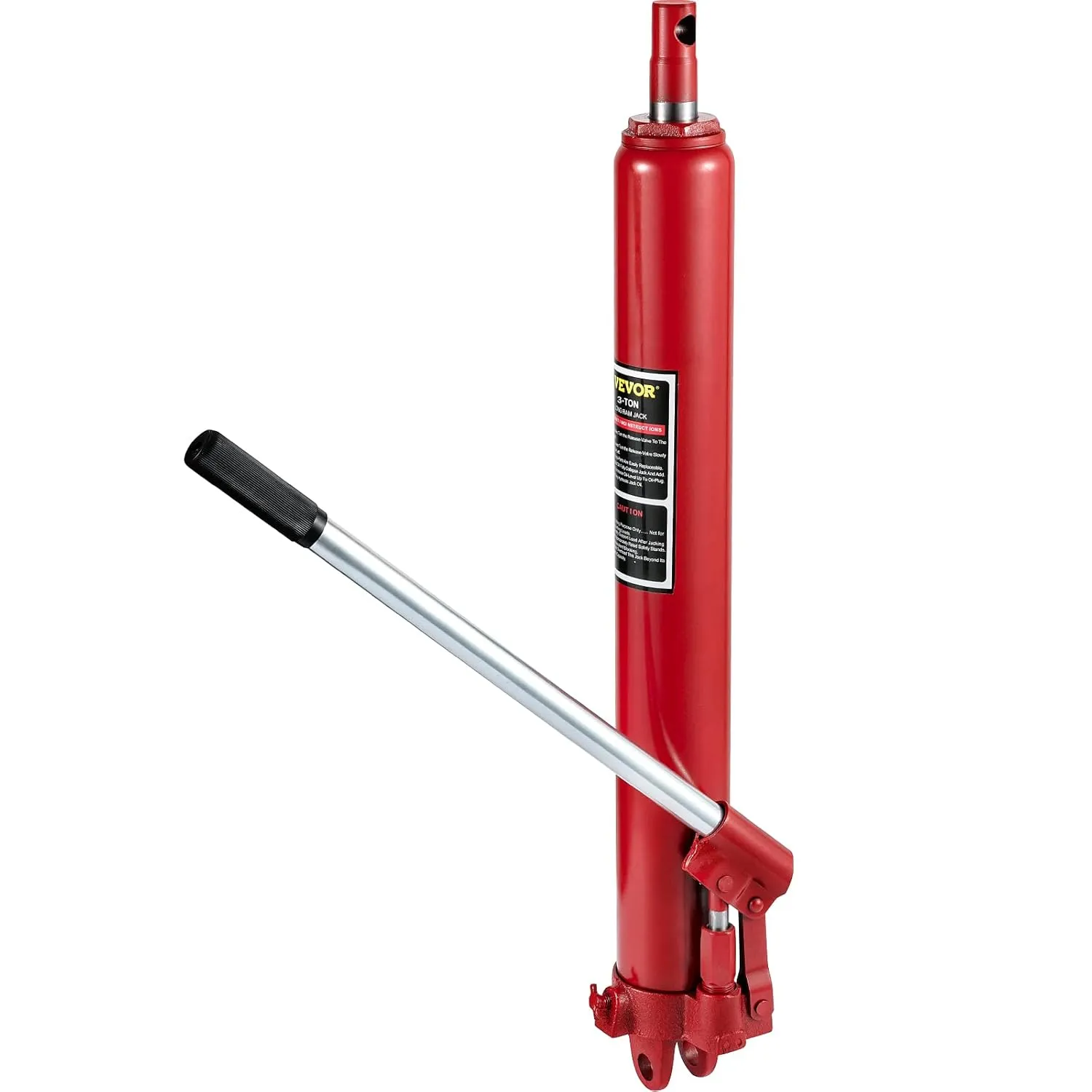

1 x Hydraulic Long Ram Jack
1 x Handle
- Product Dimensions : 26 x 3.1 x 45.7 inches; 15.9 Pounds
- Date First Available : March 4, 2022
- Manufacturer : VEVOR
