- Crafted from high - quality stainless steel and food - grade silicone, this filling machine is robust, durable, resistant to wear, rust, meeting hygiene requirements for long - term use
- Equipped with 2 filling modes (automatic and manual), it offers flexibility. The automatic mode allows free filling with set intervals, while the manual mode is controlled by a footswitch
- With a key - input method and LED display, it's easy to operate. The frequency converter and high - precision potentiometer ensure accurate flow rate adjustment within ±1% error
- The powerful peristaltic pump enables efficient filling at 22 oz/min with self - priming function. The anti - drip filling head and filter guarantee liquid quality and reduce waste
- Featuring a screw - connected bracket for wide adjustment and power - off memory function, it's also easy to clean. Ideal for small - batch production of low - viscosity liquids in multiple industries
Description

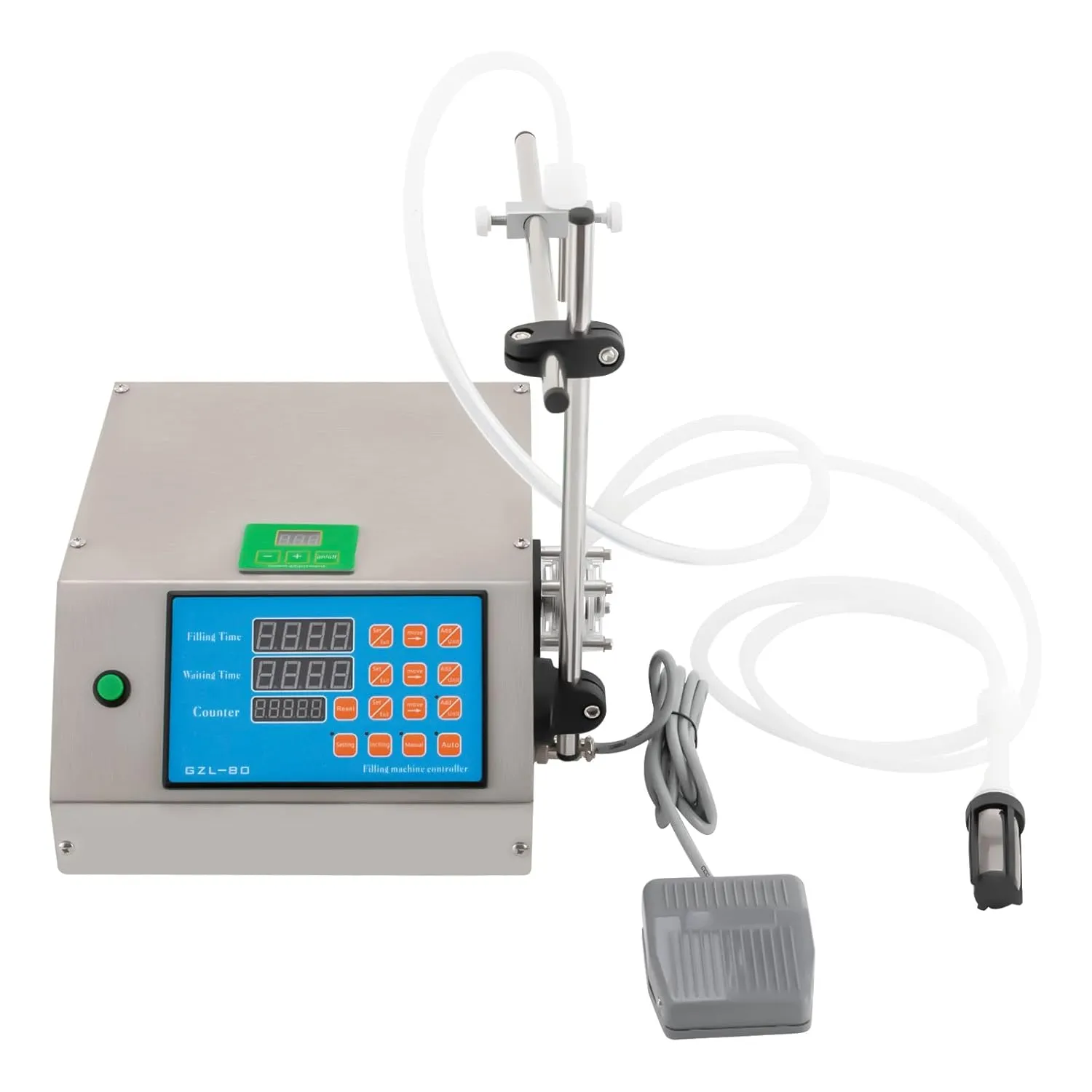

It is a sturdy, durable, high precision, high flow rate, and high-efficiency single-head liquid filling machine made of high-quality stainless steel.
Its unique leak-proof design and powerful diaphragm pump can greatly improve filling accuracy and efficiency.
So, it will be an ideal helper for small-batch production in the chemical, beverage, grease, and cosmetic industries.
Details
Two Nozzles: The package includes nozzles with an outer diameter of 4 mm and 6 mm for bottles with different sizes of openings.
Multiple Cooling Holes: The cooling holes on the side of the machine provide good heat dissipation performance,
and can maintain stable performance even after long-term operation.
Application
It is suitable for the small batch production of low viscosity and non-particle liquid with good fluidity in pharmaceutical,
petroleum, chemical, edible oil, beverage, cosmetics, and other industries. It can withstand a maximum temperature of 140°F
Specifications
Material: Stainless Steel, Food-grade Silicone
Color: Silver
Model: GZL-80
Voltage: 110V 60HZ
Power: 100W
Display Type: LED
Filling Accuracy: Within ±1%
Plug Type: American Standard
Maximum Suction Range: 2m/6.56ft
Liquid Max. Temperature: 60℃/140°F
Automation Degree: Semi-automatic
Power-off Memory Function: Yes
Anti-drip Function: Yes
Recommended Filling Range: 1-50ML/0.033-1.69oz
Filling Flow: 650ML/min (22oz/min)
Repetition Error: ±0.5%
Product Size: 29*30*14cm/11.42*11.81*5.51in
Bracket Length: 30cm/11.81in
Nozzles Specification: 4mm/0.15in, 6mm/0.23in
Packing Size: 37*31*18cm/14.56*12.2*7.08in
Gross Weight: 5kg/11.02lbs
Net Weight: 4.7kg/10.36lbs
Package Included
1* Liquid Filling Machine
1* Power Cord
2* Brackets
1* Footswitch
2* Nozzles
1* English Manual
All Accessories Needed for Installation
- Product Dimensions : 11.42 x 11.81 x 5.51 inches; 10.36 Pounds
- Date First Available : February 27, 2025
- Manufacturer : DKIDYSTRY_US
- Country of Origin : China
